C110 Partition / Sneeze Guard


Overview:
  The C110 partition sneeze guards can be used for many general sneeze guard applications. These systems have a vertical front shield , and are available in five standard heights 12", 18", 22", 24" and 26". The C110 is used on straight counters and does not work on curved counters. This partition system is referred to as the "In-line" post system. The post are in-line with the shield glass.
Examples:

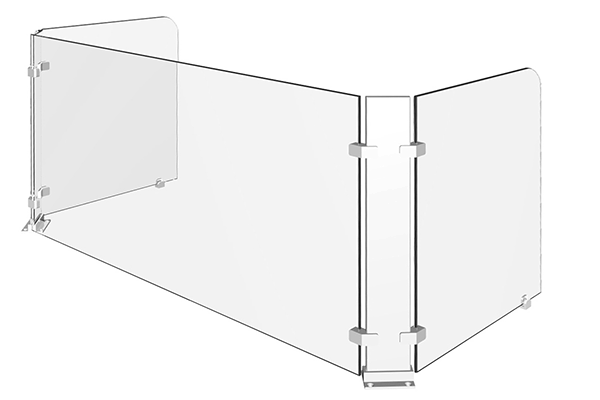

  C110 Single Bay Carving Station
  C110 Corner Post
  C110A Tapered End Post
  C110 Posts with Deep Extension





C110 Carving Sta
Clik Image Cut Sheet

C110 Partition w/ Closed ends
(42 in. max support to support)
Support Styles:
  The C110 has two standard supports styles made from Crystal Clear 1/2" safety glass. They are "Square", and "Tapered" posts. There are two styles of glass-to-glass connections, 180 and 45. There as end extensions which connect to the post and use a mini clamp at the end to stabilize the panel. This gives a very clean look and a narrow footprint.
C110-Sq C110-Tapered C110-180 C110-Deep C110-Extend
Square Tapered Center Deep Extended
NSF Certified when Deep or Extended end supports are used
Upgrades:

  Radius Corners
Powder-coat colors
  Carved Glass Designs / Logos
C110-Corner
Specialty Units:
  A C110 partition system has two type of connection hardware, 180° and 45° . A 90° corners has 2 set of 45° hardware.
C110 45° Connection
C110 90° Connection
Design Center
  C110- Work Sheet


Add-Ons

  LED Lights
