C152 Attributes


C152 Full Service (pass over) Sneeze Guard Attributes
  Vertical Shield The C152 has a front shield which is sloped 10° with reference to the counter surface. There are two standard shield heights (18" & 22" ). These give overall unit heights of 18-3/4" and 22-3/4" which are NSF certified. The front shield is 1/4" clear safety glass. There is a 1/2" air gap under the front shield for ease of cleaning and air circulation.
  Top Shelf The C152 provides a wide verity of top shelf option. Depending on the supports used the top shelf can have a front to back depth of 12" or 18". Both shelf depths are NSF approved providing the correct end supports are used. The top shelf is 1/4" clear safety glass, and can be upgraded to 3/8" Crystal Clear safety glass.

  Huge Bay Size The C152 can have a bay size up to 84". This is two times larger than the industry standard. This means that there are fewer visual interruptions for the customer, fewer counter attachments, more working space for the server.

  Smooth Surfaces Multi-bay units are joined so that there is a smooth top shelf and front shield. No limitation on where plates can be placed due to post bump.
  Standard vs. Custom Standard units ship within 48 hours, where custom size units require 7 days to ship. We stock the glass for bay sizes 24" to 84" in 6" steps. That is 24", 30", 36". . . . 72", 78", 84" are stock sizes. It not only takes longer for a custom size we also charge a 20% premium. At this time we do not stock shelves for the standard size units. This means any unit which requires a shelf will take 7 days to ship.

  Removable Shelf When the correct end supports are used the C152 can accommodate a 11", or 17" mid shelf. On small units (42"or less) the shelf is made from 1/4" clear safety glass, and can be upgraded to 3/8" crystal clear safety glass. On self units greater than 42" up to a maxim length of 60" the shelf is made from 3/8" crystal clear safety glass.
  Supports The C152 has five support options made from Crystal Clear Safety Tempered glass. The Closed and Sculptured supports each a 2"x 3" attachment footprint, which is at the front edge of the sneeze guard. The Closed and Sculptured supports cannot support a mid-shelf, and will only support a 12" top-self. The end is the most popular end and will satisfy most health departments, but it is not a NSF certified unit if it is the end support. The Deep and Extended supports are NSF approved for use as the end support. The Deep and Extended supports also allow the deeper top and mid shelves.
  C152A Curved The C152A is identical to the C152 except it had specialized hardware which allows the front shield to be at an angle other than 180 to each other. This allows both inside and outside curved units. These units require custom tempered glass and generally require 2-3 weeks for manufacturing.
  Shipping We ship using UPS Freight, and UPS Parcel. Our shipping volume gives us a 85% discount with UPS Freight. Shipments to the West Coast typically have a ship time of 1 day, while the East Coast takes 3-4 days.
  Assembly We build every sneeze guard at the factory, photograph the unit, and then knock it down for shipping. These units are easy assembled at the customer site. It only requires a Phillips screw driver and assistance in holding. Assemble it, move it into place and screw it down.
C152
C152 Double Bay Sculptured Center

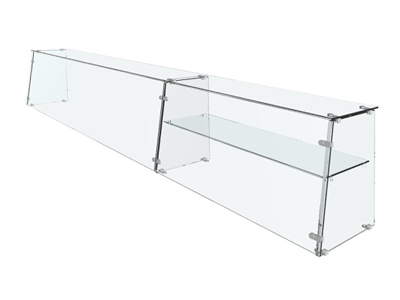

C152
C152 Double Bay
(Closed ends & one shelf)

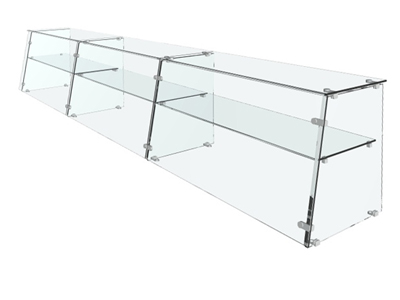

C152
C152 Triple bay w/ Shelf
Crystal Clear Glass
Clear and Crystal Clear Glass
Support Styles NSF Certified with Deep or Extended Ends
C152-Open C152-Sculptured C152-Closed C152-Extended
Open Sculptured Close Deep Extended
