Partitions systems are used for pass-over sneeze guards and as area dividers. They allow the customer to visually inspect the food without providing physical access to the food. Typically a partition separates the food prep area from the customers. Most health departments want the partition to provide protection from the customers breath area (NSF has the breath area at 54-60" off the floor). We have two different manufacturing styles, CRY and CRG. The CRY series uses our standard button & strap assembly. This allows us to manufacture significant structures which all interconnect. They can be knocked down, shipped, and reassembled on site. The second method is the CRG assembly. These units are assembled at the factory using a special UV adhesive. They are shipped as an assembled unit which constrains the maximum size of each unit. There are four CRY styles, and four CRG styles. Each product-line has its own individual attributes, but common to all is that the customer does not have direct access to the food. This page shows the CRG series. There are links to the detailed specification for each model below.

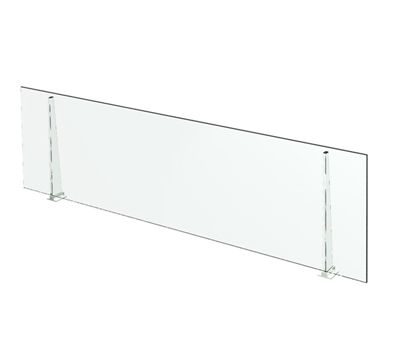

This partition system uses CRG construction. No hardware other than the post boot. The standard configuration has a vertical shield of 1/4" clear glass and 1/2" Crystal Clear heat strengthened supports. The shield can be upgraded to 9 different glass types including 3/8" and 1/2" glass. The 1/2" Crystal Clear support post are attached to the backside of the shield with crystal clear UV adhesive.

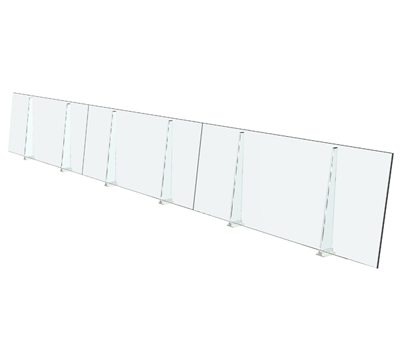

This is a gorgeous partition style. The C402 partition is similar to the C102 exempt it uses CRG construction. The standard shield is 1/4" Clear safety tempered glass and has a 10° backwards slant. The shield can be upgraded to 9 different glass types including 3/8" and 1/2" glass.

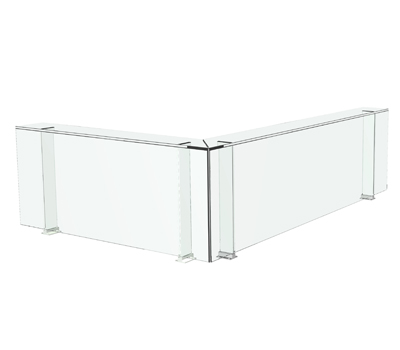

The C408 uses CRG construction and is similar to the C400 except it has a mini 4" top shelf. The standard shield and top shelf are 3/8" Clear glass, and the support posts are 1/2" Crystal Clear safety glass. The shield and shelf glass can be up graded to Crystal Clear glass or thicker 1/2" glass. The 4" shelf contributes to the overall sneeze guard height. Always review your plans with your local health department.

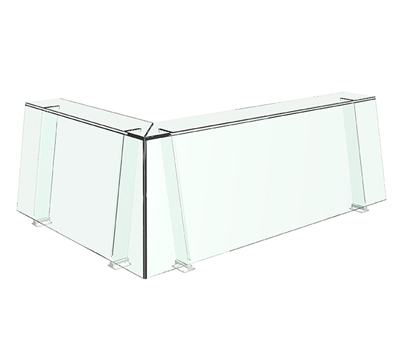

Similar to the C408 except the shield tilts back 10°. The shield and shelf are 3/8" clear safety tempered glass. Support posts are crystal clear 1/2" safety tempered glass. The shield and top shelf can be upgraded to Crystal Clear glass for that extra sparkle. Use ½" glass for the shield and shelf for a more substantial look. The 4" top shelf allows a lower partition while still meeting the health dept.. requirements. Always review your plans with your local health department.
