C402 Partition / Sneeze Guard


Overview:
  The C402 Food Shield is built with CRG construction techniques.  The C402 model is similar to the C400 model except that the shield tilts back 10 degrees.  The shield glass is attached to Crystal Clear post using a special crystal clear glass adheasive. The only hardware used on this partition are the 2"x3" flanged boot used on the support posts.  These units are available in four standard heights 18", 22", 24" and 26". There are seven standard widths with the largest panel being 60" wide, and decreasing in 6" steps down to 18".  Custom sizes are available. These pratitions are designed for easy cleaning.  There are no small gaps or hard to clean areas. The partition panels have a 1/2" air gap under the panels for easy counter cleaning.
Examples:

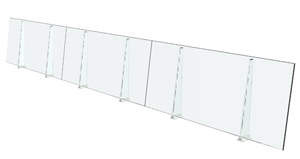

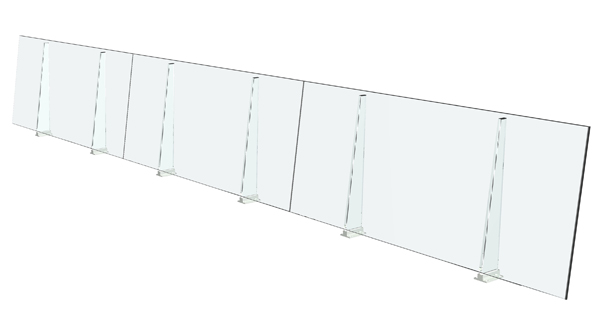

  C402 3 Panel Partition
  C402 Carving Station
  C402 1 Panel

C100
Click Image Cut Sheet
C402 Partition
(60 in. max panel width)
Support Styles:


The support post is tapered and offset in style. The post has a 2in. x 3in. flanged base. The flange base uses 4 -#10 screws to attach it to the counter surface.  The support posts are attached to the backside of the shield using a crystal clear glass adhesive. The posts are located on the shield 4" or 6" in from the edge depending on the shield size.

Tapered Mounting Boot
NSF Meets NSF requirements with proper height and installed correctly
Upgrades:
Clipped Corners
  Round Corners
Scallop Corners
Glass Options
  1/4" Clear Glass (standard)
1/4" Frosted
1/4" Bronze
1/4" Gray
3/8" Clear
3/8" Crystal Clear
3/8" Frosted
3/8" Bronze
3/8" Gray
1/2" Clear
1/2" Crystal Clear

Attributes:

Design Center
  C402 Work Sheet
Add-Ons

Carved Glass Designs
Logo Designs
