C124 Attributes


C124 Self Serve Sneeze Guard Attributes
  Shield Glass The C124 is a simple self-serve sneeze guard. The shield is 14" deep and is held at a 45° angle to the floor. The front edge of the sneeze guard is 13" off the counter. The shield glass is made from 1/4" clear tempered safety glass for sizes 42" or less, with the option a an upgrade to 3/8" crystal clear glass. On shield larger than 42" it is automatically made of 3/8" crystal clear safety tempered glass.
  Bay Size The standard sizes for the C124 sneeze guard are from 24" up to 60" in 6" increments. The maximum distance between supports is 60".

  Smooth Surfaces Multi-bay units are joined so that there is a smooth top shelf and front shield. No limitation on where plates can be placed due to post bump.
  Standard vs. Custom Standard units ship within 48 hours, where custom size units require 7 days to ship. We stock the glass for bay sizes 24" to 60" in 6" steps. That is 24", 30", 36". . . . 54",60" are stock sizes. It not only takes longer for a custom size we also charge a 20% premium.

  Corners The standard C124 unit has square corners.  Rounded corners (1" radius) on the shield offers a softer look, and is available as an upgrade.  This requires the ordering of custom glass, so it takes 7-10 days to ship.
  Supports The C124 has six support options made from Clear or Crystal Clear Safety Tempered glass. The Front, Closed and Sculptured supports each have a 2"x 3" attachment footprint. These three supports are design to straddle food wells The Front support is attached at the front edge of the sneeze guard. The Open support is centered under the shield, and the sculptured boot attachment is 18" back from the front edge of the sneeze guard. A NSF approved sneeze guard requires either the Deep or the Extended supports on the ends of the unit.
  C124A Curved The C124A is identical to the C124 except it had specialized hardware which allows the front shield to be at an angle other than 180° to each other . This allows both inside and outside curved units. These units require custom tempered glass and generally require 2-3 weeks for manufacturing.
  Shipping We ship using UPS Freight, and UPS Parcel. Our shipping volume gives us a 85% discount with UPS Freight. Shipments to the West Coast typically have a ship time of 1-2 days, while the East Coast takes 3-5 days.
  Assembly We build every sneeze guard at the factory, photograph the unit, and then knock it down for shipping. These units are easy assembled at the customer site. It only requires a Phillips screw driver and assistance in holding. Assemble it, move it into place and screw it down.

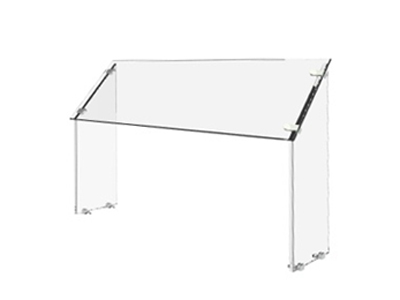

C124-Single Bay
C124 Single Bay Closed ends
124-Sculptured Support

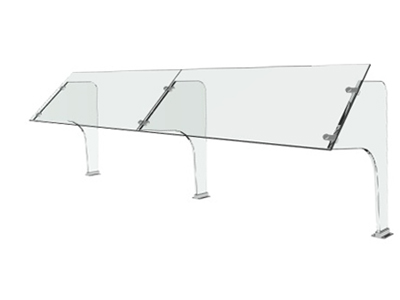

C124 Double Bay
(Sculptured Supports)


Crystal Clear Glass
Clear and Crystal Clear Glass
Support Styles NSF Certified with Deep or Extended Ends
C124-Front C124-Open C124-Closed C124-Deep C124-Extended
Front Open Sculptured Closed Deep Extended
